Sit-Elatech:ELA-Flex SD环形无缝同步带,Elatech传动公司致力于生产优质的聚氨酯同步带,为客户解决各种传动带问题,提供合适的同步带解决方案。


Available profiles(同步带齿型参数)

T (5 – 10 – 20)

AT (5 – 10 – 20)

MXL – XL – L – H – XH

HTD (5 – 8 – 14)

RTD (5 – 8 – 14)

STD (5 – 8 – 14)

EAGLE (8 – 10 – 14)

FLAT (2 – 2,5 – 3 – 9)

ATK10 – K6

ATM10

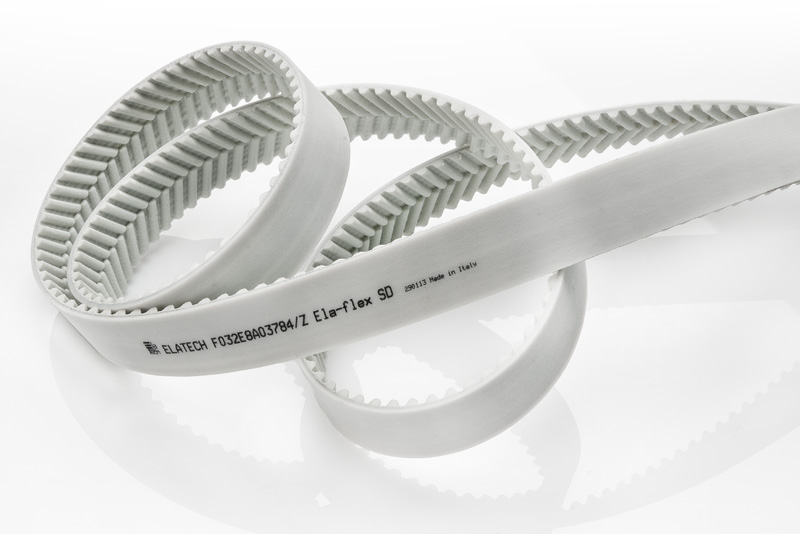

ELA-Flex SD turly endless


The Ela-flexSD belts are manufactured with high tension strength steel tension cords and with high wear, abrasion and tear resistant polyurethane.


Having no splice or welding, the belts have no weak cross sections. ELA-flex SD timing belts are therefore ideal for high speed power transmission and high load conveying applications. Available in a wide range of profiles and pitches, produced inany required length, tooth by tooth from 800 mm to 24,000 mm in order to provide the best flexibility in application.


Available also as dual-toothed timing belts (DUAL)

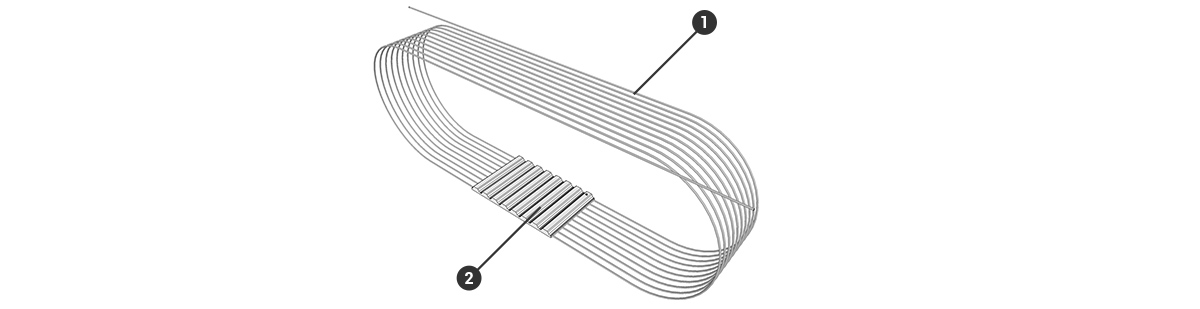

Belt structure

1) Body thermoplastic polyurethane 92 ° Sh.A high wear resistance.

2) The traction element consists of steel cables high strength and high elastic modulus.


ABUIABACGAAg9PCd-gUonqHeoAUwsAk4tQI

ELA-flexSD NEXT

NEXT execution with bifilar wound (S + Z) cords. It limits or cancels the lateral forces generated, during rotation, by the winding direction of the belt drive element. This resultsin a reduction of friction in the transmission and in a reduction of the backlash.

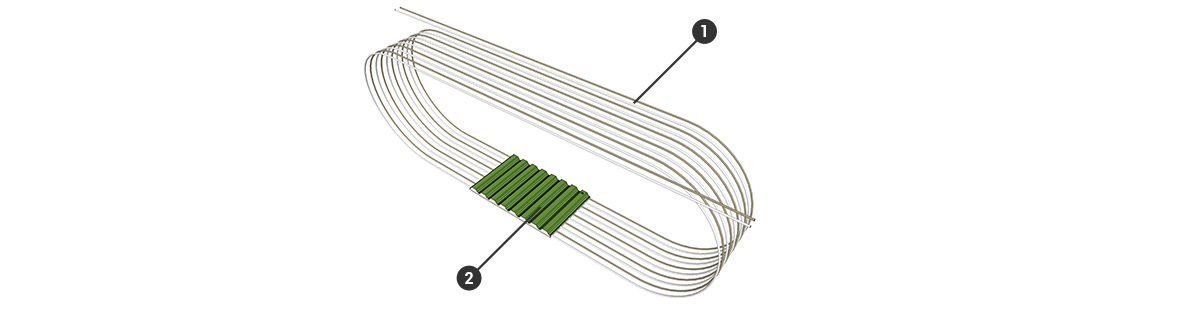

Belt structure

1) Body made of thermoplastic polyurethane 92 ° Sh.A high wear resistance.

2) Traction element made of bifilar wound steel cords with high strength and high elastic modulus.
